Standard or Custom-Built. Sale or Rental.
Subsea Baskets
DNV-approved subsea baskets engineered for safe deployment and and recovery of subsea tooling and equipment

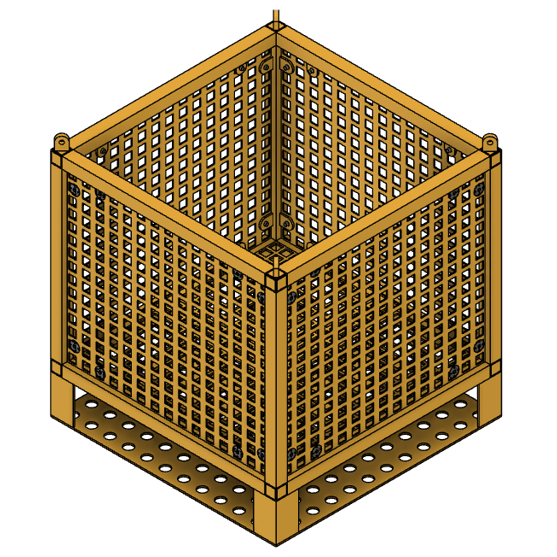

1.5m Cube Basket
Centre Pole Basket
A Frame Basket
10' Basket
15' Basket
20' Basket

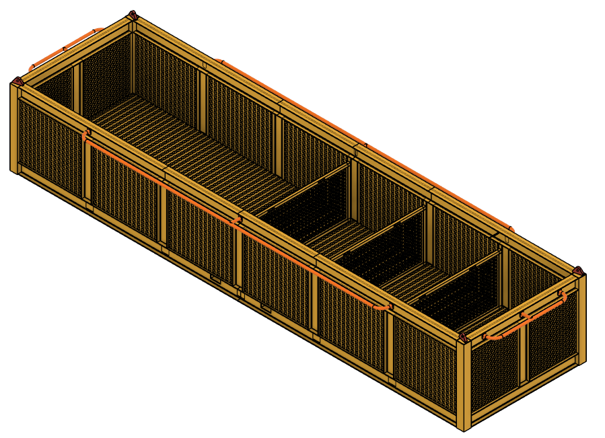

30' Basket

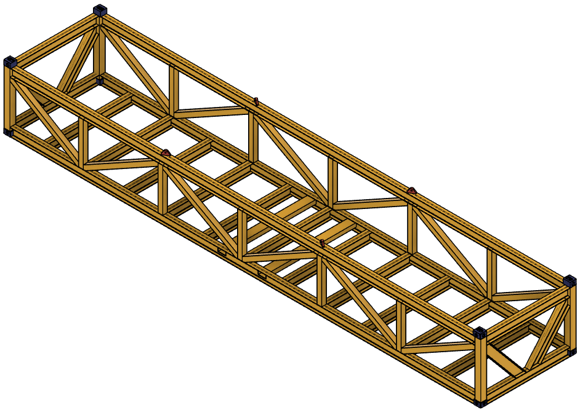

40' Basket

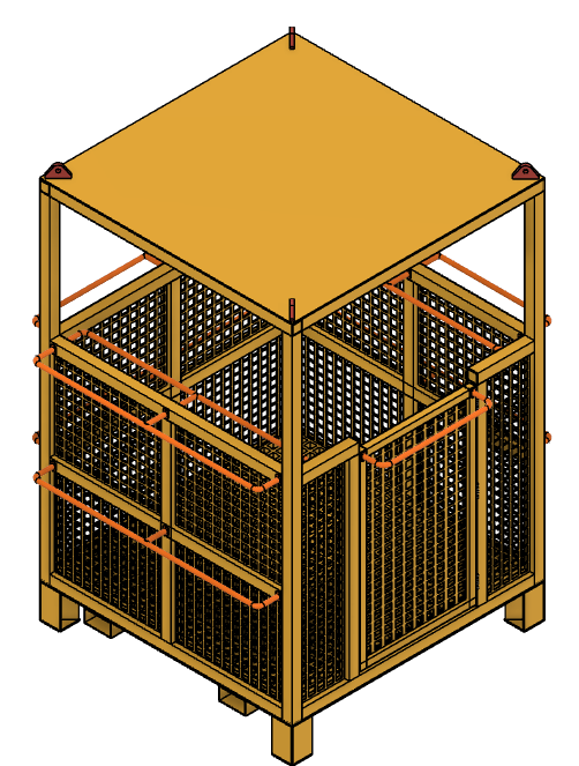

Man Riding Basket

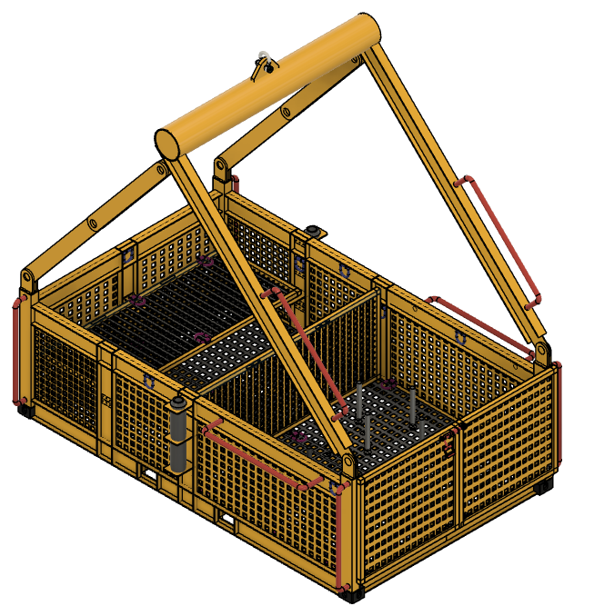

Scissor Frame Basket

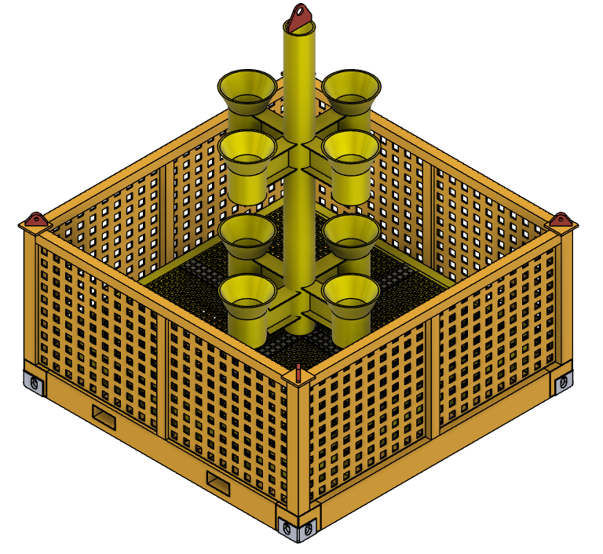

Guidepost Extension Basket

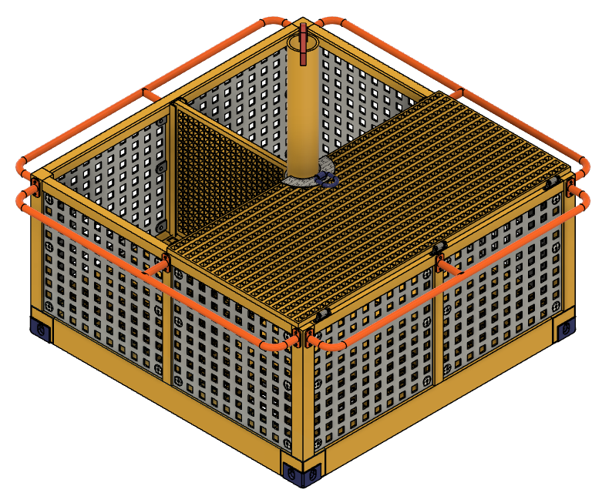

Centre Pole Basket c/w Lid & Rails

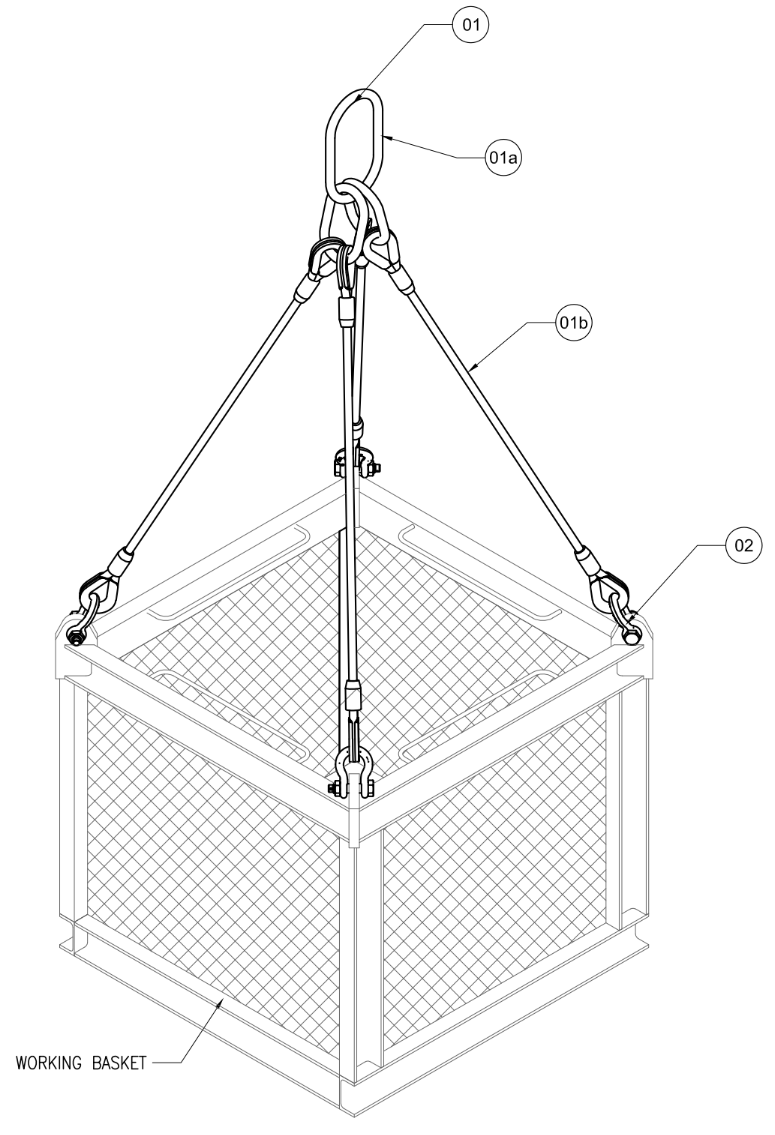

Divers Work Basket
Divers I-Tube Basket
DATASHEETS
| PRODUCT NUMBER | NAME | EXTERNAL DIMENSIONS | TARE | PAYLOAD | DATASHEET |
|---|---|---|---|---|---|

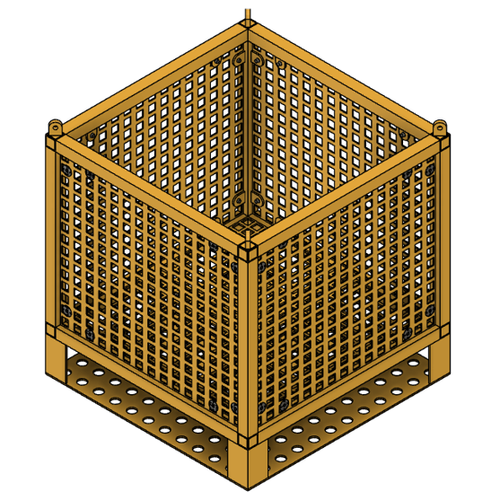

| I26051-BSK-PSS-001 | 1.5m Cube Basket | 1500×1500×1525 mm – (LxWxH) | 0.5 Te | 1.5 Te |
|

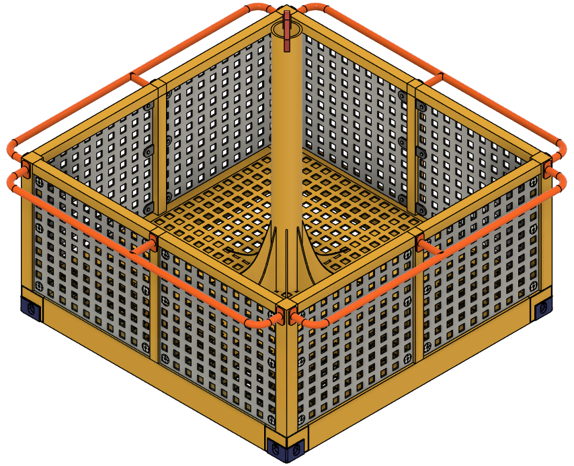

| I26052-BSK-PSS-001 | Centre Pole Basket | 2400×2400×2340 mm – (LxWxH) | 1.5 Te | 7.5 Te |
|

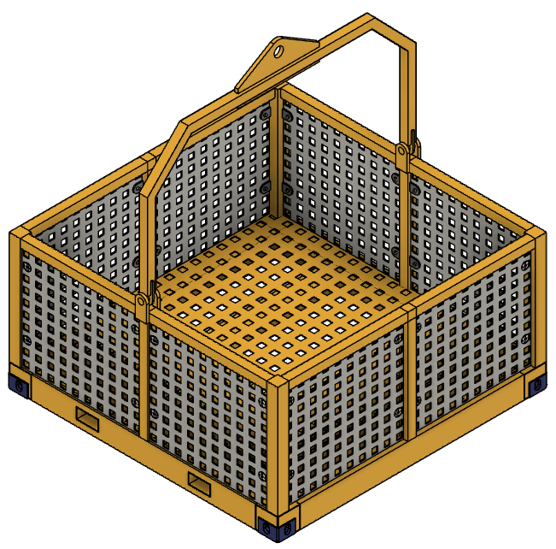

| I26053-BSK-PSS-001 | A Frame Basket | 2400×2400×1200 mm – (LxWxH) | 1.7 Te | 5.0 Te |
|

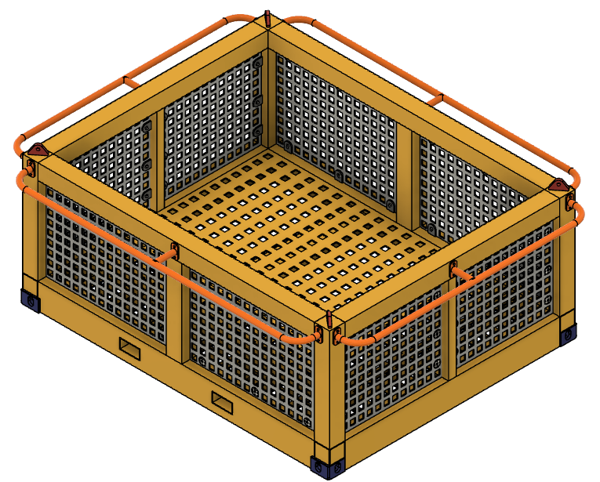

| I26054-BSK-PSS-001 | 10' Basket | 2900×2390×1255 mm – (LxWxH) | 2.0 Te | 10.0 Te |
|

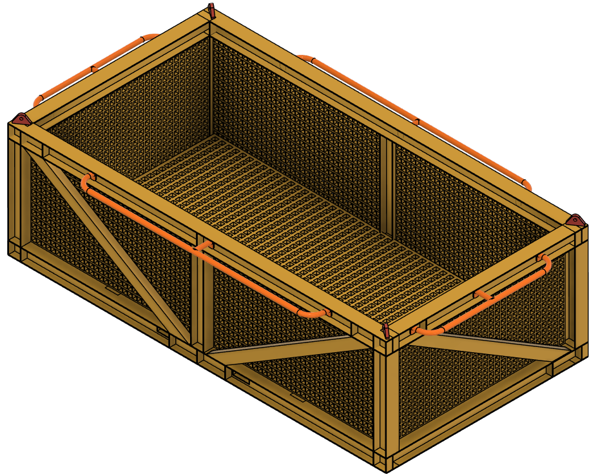

| I26055-BSK-PSS-001 | 15' Basket | 4500×2400×1360 mm – (LxWxH) | 2.5 Te | 15 Te |
|

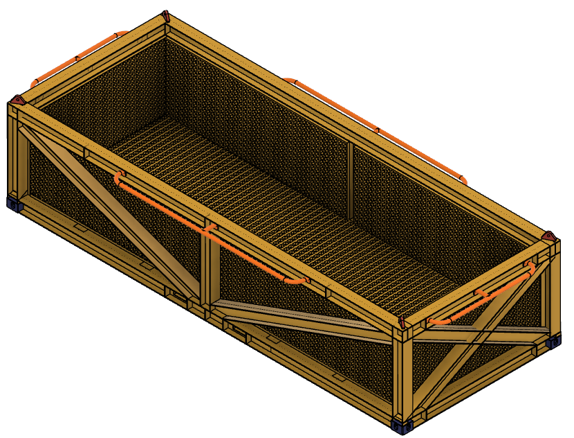

| I26056-BSK-PSS-001 | 20' Basket | 6000×2400×1360 mm – (LxWxH) | 3.5 Te | 20.0 Te |
|
| I26057-BSK-PSS-001 | 30' Basket | 9000×2430×1500 mm – (LxWxH) | 3.5 Te | 25 Te |
|
| I26058-BSK-PSS-001 | 40' Basket | 12000×2400×1620 mm – (LxWxH) | 3.5 Te | 20.0 Te |
|
| I26059-BSK-PSS-001 | Man Riding Basket | 2210×2210×2845 mm – (LxWxH) | 1.0 Te | 1.0 Te |
|
| I260510-BSK-PSS-001 | Scissor Frame Basket | 4300×2400×1381 mm – (LxWxH) | 3.5 Te | 10.0 Te |
|
| I260511-BSK-PSS-001 | Guidepost Extension Basket | 2640×2640×1440 mm – (LxWxH) | 2.0 Te | 10.0 Te |
|
| I260512-BSK-PSS-001 | Centre Pole Basket – c/w Lid and Rails | 2870×2870×1240 mm – (LxWxH) | 2.5 Te | 7.5 Te |
|
| I260525-BSK-PSS-001 | Divers Work Basket | 1020×1020×960 mm – (LxWxH) | 0.16 Te | 1.00 Te |
|

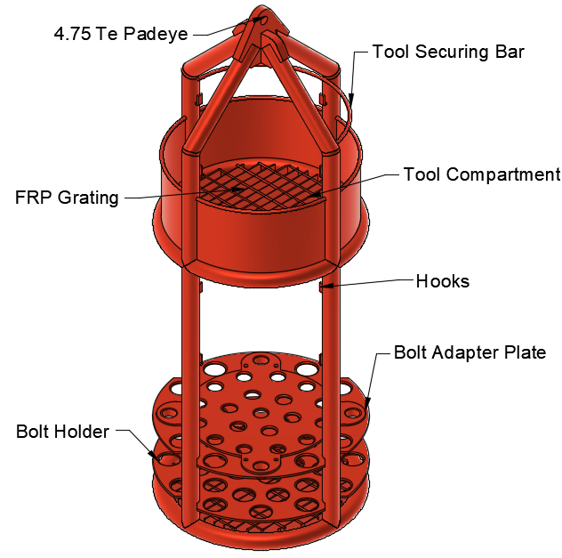

| I260513-BSK-PSS-001 | Divers I-Tube Basket | 600×600×1641 mm – (LxWxH) | 0.25 Te | 2.00 Te |
|
Frequently Asked Questions
Answers to common technical and commercial questions about Novo Subsea's engineering services, subsea equipment, and project support. For anything not covered here, don’t hesitate to contact us.
-
Yes. Baskets can be modified to suit application requirements. Standard designs can be adapted, or a bespoke basket can be engineered from scratch based on payload, vessel deck or work space constraints etc.
-
The standard or custom-built baskets are available for either sale or rental, depending on project duration and budget. Contact us for more information on a specific model.
-
All the subsea basket range is DNV 2.7-3 approved and designed to R60 classification. Bespoke baskets can be designed to clients required standards. Each product datasheet lists the specific operational class and rating for that basket.
-
Novo Subsea supplies lifting baskets and offshore equipment worldwide. The basket fleet is held in the UK, with shipment arranged as required for any project location. Fabrication is supported through an established network of partners, including facilities in the UK, Norway, and Singapore.
-
Yes, design outputs can be supported through client review, class review, or third-party verification, depending on project requirements.
