Standard or Custom-Built. Sale or Rental.

Clump Weights

Robust ballast solutions for stabilising subsea structures, moorings and deployment systems

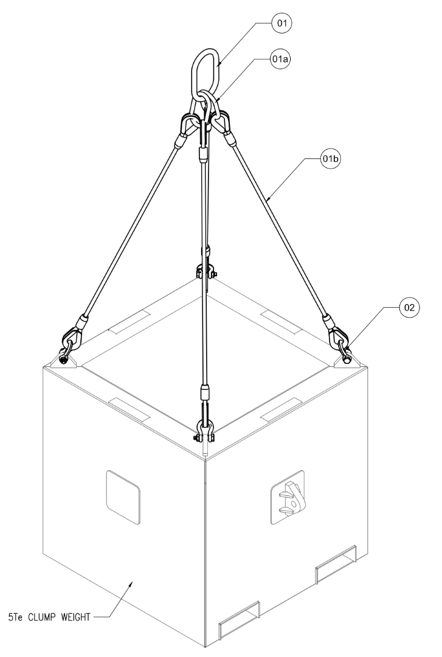

Clump weight / DMA rigging drawing using a 4 point lift. Used to stabilise objects subsea and provide ballast. Fitted with forklift pockets for transport. Any sized weights can be designed to suit your project requirements
Return to All Products

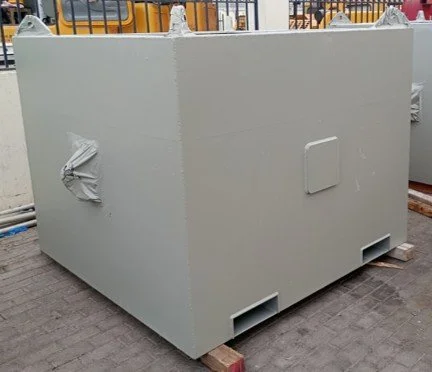

10 Te Clump weight / DMA in the final stages of fabrication. Used to stabilise objects subsea and provide ballast. Fitted with forklift pockets for transport. Any sized weights can be designed to suit your project requirements

10 Te Clump Weight

Large white industrial steel container with a sealed opening and vent-like openings at the bottom, placed on a wood pallet on a concrete floor.

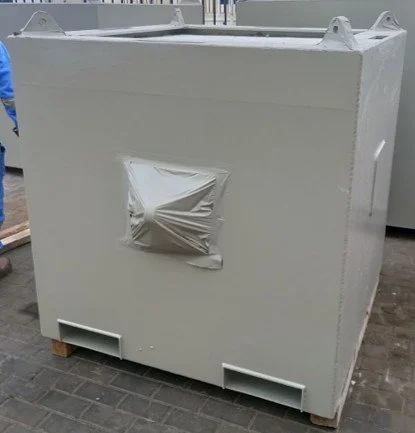

5 Te Clump Weight

DATASHEETS

PRODUCT NUMBER NAME DIMENSIONS WEIGHT IN AIR WEIGHT IN WATER DATASHEET
I260523-DMA-PSS-001 10 Te Clump Weight 1710x1710x1540 mm - (LxWxH) 10.0 Te 5.3 Te
Datasheet
Datasheet Preview
I260524-DMA-PSS-001 5 Te Clump Weight 1250x1250x1370 mm - (LxWxH) 5.0 Te 2.8 Te
Datasheet
Datasheet Preview
